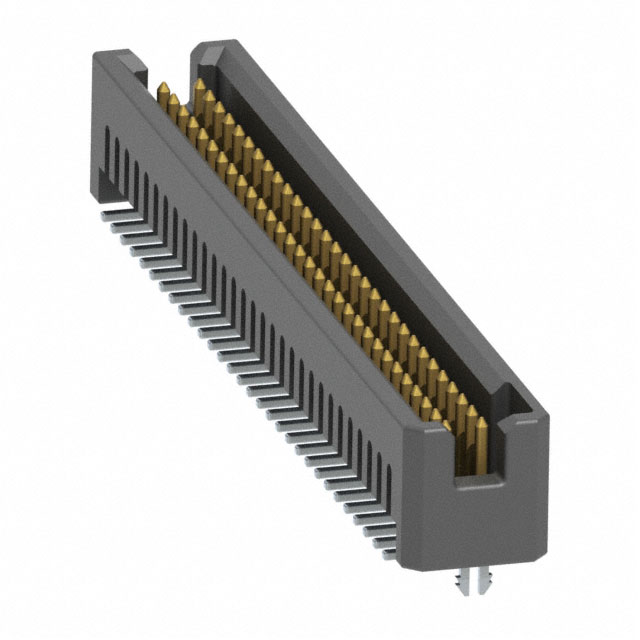

TFM-130-02-S-D-LC-TR
CONN HEADER SMD 60POS 1.27MM
Manufacturer: Samtec Inc.IC code: TFM-130-02-S-D-LC-TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 60 position 0.050" (1.27mm)
Specifications
- Mfr
- Samtec Inc.
- Style
- Board to Board or Cable
- Series
- Tiger Eye™ TFM
- Features
- Board Lock
- Packaging
- Tape & Reel (TR)
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
- Fastening Type
- Push-Pull
- Number of Rows
- 2
- Pitch - Mating
- 0.050" (1.27mm)
- Voltage Rating
- 250VAC
- Contact Material
- Phosphor Bronze
- Insulation Color
- Black
- Insulation Height
- 0.220" (5.60mm)
- Ingress Protection
- -
- Base Product Number
- TFM-130
- Insulation Material
- Liquid Crystal Polymer (LCP)
- Number of Positions
- 60
- Row Spacing - Mating
- 0.050" (1.27mm)
- Contact Finish - Post
- Tin
- Contact Length - Post
- -
- Current Rating (Amps)
- 3.2A per Contact
- Operating Temperature
- -55°C ~ 125°C
- Mated Stacking Heights
- -
- Overall Contact Length
- -
- Contact Finish - Mating
- Gold
- Contact Length - Mating
- 0.131" (3.33mm)
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- -
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Tape & Reel (TR) | 350 | ¥51.60497 |
