Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

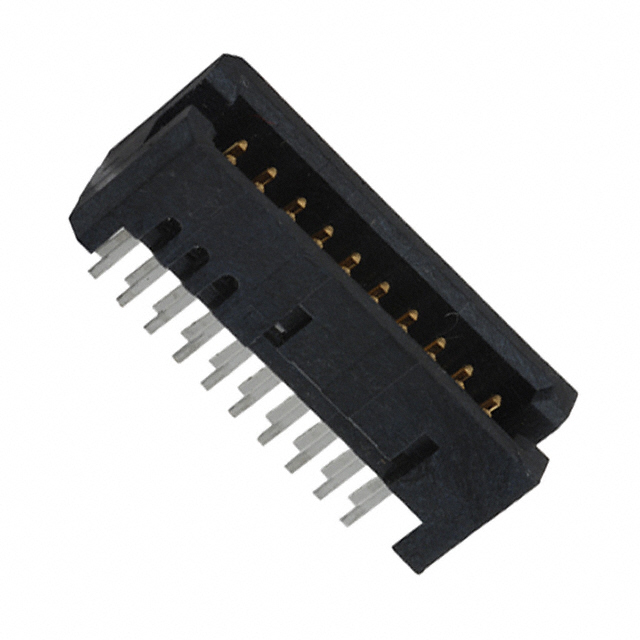

Connector Header Through Hole 20 position 0.050" (1.27mm)
Specifications
- Mfr
- Samtec Inc.
- Style
- Board to Board or Cable
- Series
- Tiger Eye™ TFML
- Features
- -
- Packaging
- Tube
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Header
Pitch - Mating0.050" (1.27mm) Contact MaterialPhosphor Bronze Insulation Height0.220" (5.60mm) Base Product NumberTFML-110 Insulation MaterialLiquid Crystal Polymer (LCP) Row Spacing - Mating0.050" (1.27mm) Contact Length - Post0.075" (1.91mm) Operating Temperature-55°C ~ 125°C Contact Finish - MatingGold Contact Length - Mating0.134" (3.39mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating30.0µin (0.76µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥47.62000 |
| Tube | 25 | ¥43.03560 |
| Tube | 50 | ¥39.98080 |
| Tube | 100 | ¥38.09410 |
| Tube | 500 | ¥29.01980 |
| Tube | 1,000 | ¥26.05502 |
| Tube | 2,500 | ¥20.03538 |
| Tube | 5,000 | ¥16.15780 |
