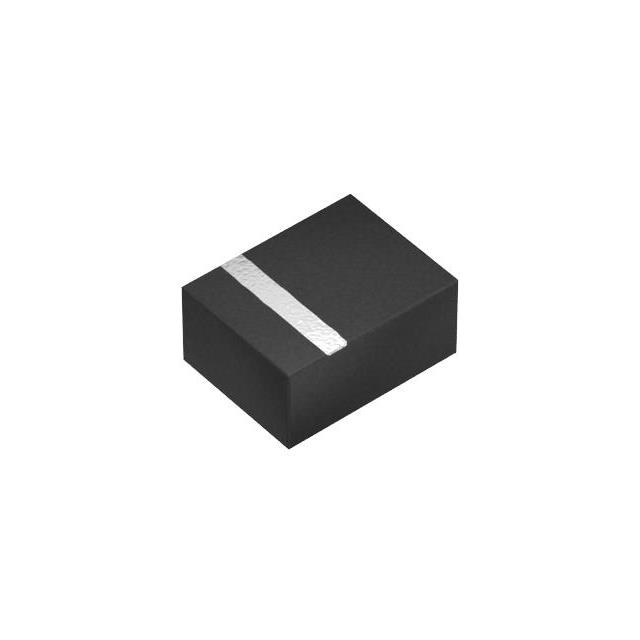

TFSZ06051897-3317A1X
THIN-FILM BALUN FOR 1805-1990MHZ
Manufacturer: TDK CorporationIC code: 445-TFSZ06051897-3317A1XTR-ND - Tape & Reel (TR) || 445-TFSZ06051897-3317A1XCT-ND - Cut Tape (CT) || 445-TFSZ06051897-3317A1XDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Balun 1.805GHz ~ 1.99GHz 1:2, 50 / 100Ohm 0202 (0505 Metric), 4 PC Pad
Specifications
- Series
- TFS
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- TDK Corporation
- Mounting Type
- Surface Mount
- Package / Case
- 0202 (0505 Metric), 4 PC Pad
- Frequency Range
- 1.805GHz ~ 1.99GHz
- Phase Difference
- 180° ±10
- Return Loss (Min)
- 10dB
- Base Product Number
- TFSZ06051897
- Insertion Loss (Max)
- 0.7dB
- Impedance - Unbalanced/Balanced
- 1:2, 50 / 100Ohm
