Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

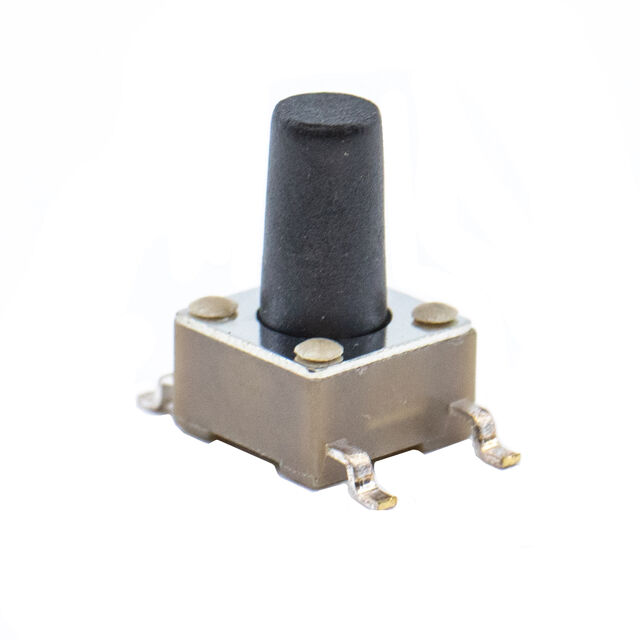

Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- E-Switch
- Series
- TL3301
- Circuit
- SPST-NO
- Outline
- 6.00mm x 6.00mm
- Features
- -
- Packaging
- Tube
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- 100,000 Cycles
- Operating Force
- 260gf
Actuator MaterialPolyamide (PA), Nylon Termination StyleGull Wing Base Product NumberTL3301 Actuator OrientationTop Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical9.50mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥3.97000 |
| Tube | 10 | ¥3.41600 |
| Tube | 90 | ¥2.87522 |
| Tube | 180 | ¥2.71350 |
| Tube | 270 | ¥2.62311 |
| Tube | 540 | ¥2.47609 |
| Tube | 1,080 | ¥2.33980 |
| Tube | 2,520 | ¥2.18899 |
| Tube | 5,040 | ¥2.07885 |
