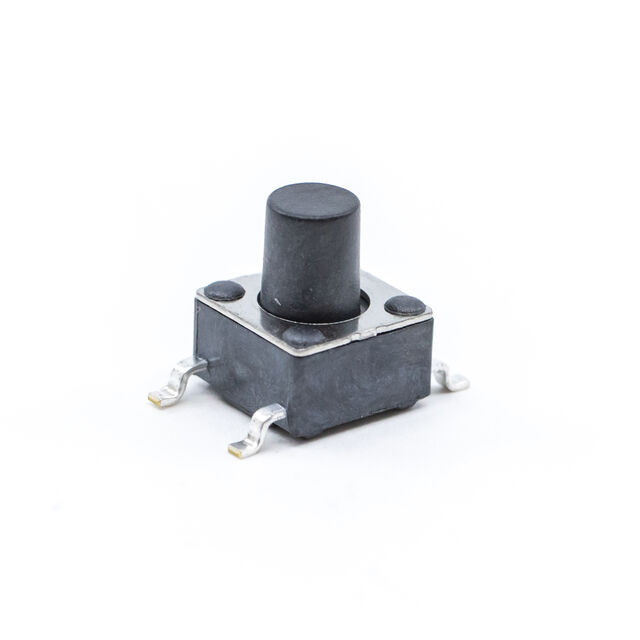

TL3301EF260QG
SWITCH TACTILE SPST-NO 0.05A 12V
Manufacturer: E-SwitchIC code: EG6053TR-ND - Tape & Reel (TR) || EG6053CT-ND - Cut Tape (CT) || EG6053DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- E-Switch
- Series
- TL3301
- Circuit
- SPST-NO
- Outline
- 6.00mm x 6.00mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- 100,000 Cycles
- Operating Force
- 260gf
Actuator MaterialPolyamide (PA), Nylon Termination StyleGull Wing Base Product NumberTL3301 Actuator OrientationTop Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical7.30mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥3.97000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.45700 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥3.22520 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.88210 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥2.67020 |
| Tape & Reel (TR) | 700 | ¥2.45146 |
| Tape & Reel (TR) | 1,400 | ¥2.31796 |
| Tape & Reel (TR) | 2,100 | ¥2.24538 |
| Tape & Reel (TR) | 3,500 | ¥2.15989 |
| Tape & Reel (TR) | 4,900 | ¥2.10711 |
| Tape & Reel (TR) | 7,000 | ¥2.05427 |
| Tape & Reel (TR) | 17,500 | ¥1.93256 |
| Tape & Reel (TR) | 35,000 | ¥1.85323 |
