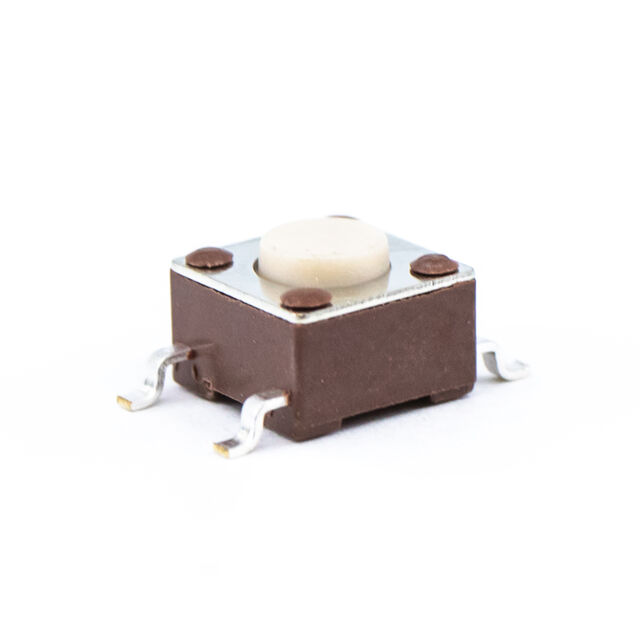

TL3301NF260QG
SWITCH TACTILE SPST-NO 0.05A 12V
Manufacturer: E-SwitchIC code: EG1868TR-ND - Tape & Reel (TR) || EG1868CT-ND - Cut Tape (CT) || EG1868DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- E-Switch
- Series
- TL3301
- Circuit
- SPST-NO
- Outline
- 6.00mm x 6.00mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- 100,000 Cycles
- Operating Force
- 260gf
Actuator MaterialPolyamide (PA), Nylon Termination StyleGull Wing Base Product NumberTL3301 Actuator OrientationTop Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical4.30mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥3.39000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.94400 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥2.74560 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.45700 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥2.27624 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.14838 |
| Tape & Reel (TR) | 1,200 | ¥1.99948 |
| Tape & Reel (TR) | 2,400 | ¥1.89273 |
| Tape & Reel (TR) | 3,600 | ¥1.83493 |
| Tape & Reel (TR) | 6,000 | ¥1.76712 |
| Tape & Reel (TR) | 8,400 | ¥1.72542 |
| Tape & Reel (TR) | 12,000 | ¥1.68374 |
| Tape & Reel (TR) | 30,000 | ¥1.58820 |
