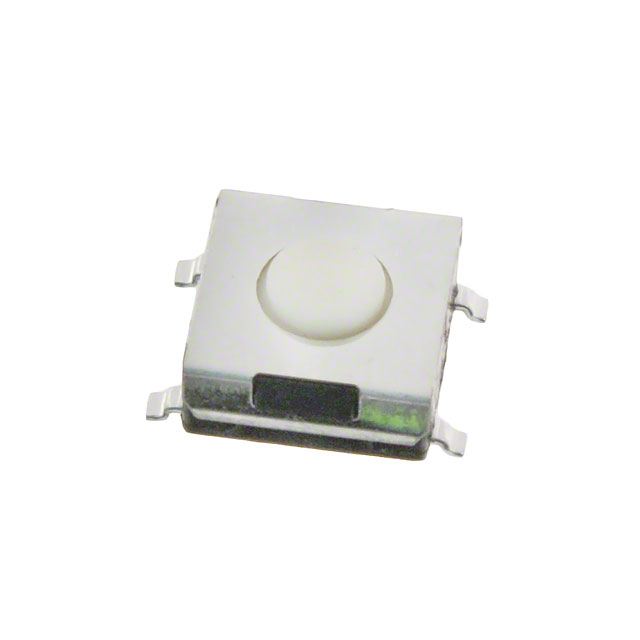

TL3303F160QG
SWITCH TACTILE SPST-NO 0.05A 12V
Manufacturer: E-SwitchIC code: EG4607TR-ND - Tape & Reel (TR) || EG4607CT-ND - Cut Tape (CT) || EG4607DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- E-Switch
- Series
- TL3303
- Circuit
- SPST-NO
- Outline
- 6.20mm x 6.00mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- 100,000 Cycles
- Operating Force
- 160gf
Actuator MaterialPolyphenylene Sulfide (PPS) Termination StyleGull Wing Base Product NumberTL3303 Actuator OrientationTop Actuated Operating Temperature-20°C ~ 70°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical3.10mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥7.03000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥6.02900 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥5.61360 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥5.00750 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥4.63816 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥4.38112 |
| Tape & Reel (TR) | 1,500 | ¥4.01679 |
| Tape & Reel (TR) | 3,000 | ¥3.81522 |
| Tape & Reel (TR) | 4,500 | ¥3.70738 |
| Tape & Reel (TR) | 7,500 | ¥3.58182 |
| Tape & Reel (TR) | 10,500 | ¥3.50520 |
| Tape & Reel (TR) | 15,000 | ¥3.42907 |
