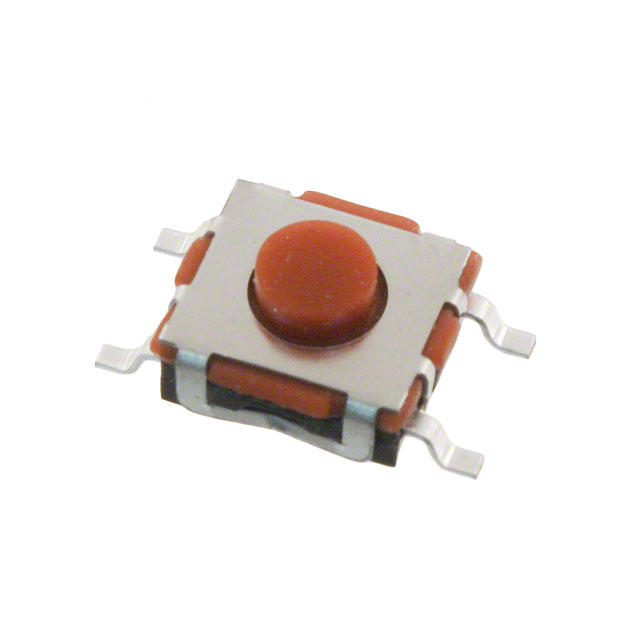

TL6700AF260QG
SWITCH TACTILE SPST-NO 0.05A 12V
Manufacturer: E-SwitchIC code: EG4387TR-ND - Tape & Reel (TR) || EG4387CT-ND - Cut Tape (CT) || EG4387DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- E-Switch
- Series
- TL6700
- Circuit
- SPST-NO
- Outline
- 6.90mm x 6.20mm
- Features
- Process Sealed
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.35mm
- Mechanical Life
- 100,000 Cycles
- Operating Force
- 260gf
Actuator MaterialSilicone Rubber Termination StyleGull Wing Base Product NumberTL6700 Actuator OrientationTop Actuated Operating Temperature-20°C ~ 70°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical3.40mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥7.11000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥6.11200 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥5.68320 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥5.06950 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥4.69572 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥4.43552 |
| Tape & Reel (TR) | 1,400 | ¥4.08845 |
| Tape & Reel (TR) | 2,800 | ¥3.88238 |
| Tape & Reel (TR) | 4,200 | ¥3.77206 |
| Tape & Reel (TR) | 7,000 | ¥3.64353 |
| Tape & Reel (TR) | 9,800 | ¥3.56506 |
| Tape & Reel (TR) | 14,000 | ¥3.48706 |
