Description

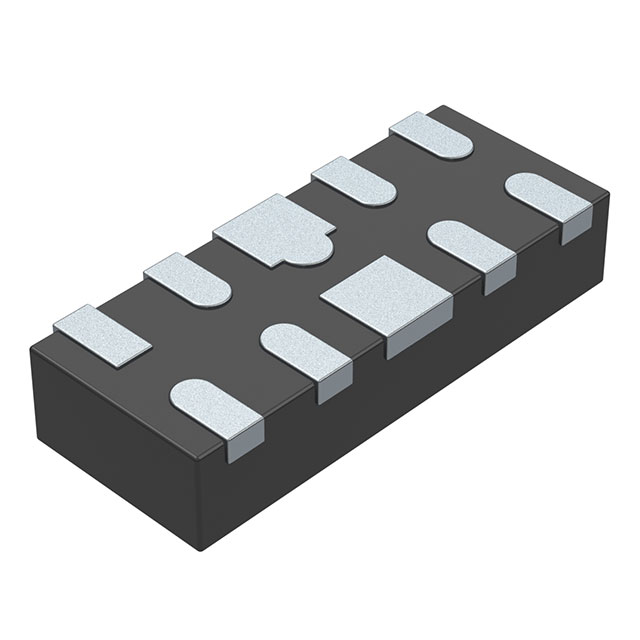

1 Circuit IC Switch 4:1 5Ohm (Typ) 10-USON (2.5x1)
Specifications
- Series
- -
- Crosstalk
- -42dB @ 10MHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Texas Instruments
- Mounting Type
- Surface Mount
- -3db Bandwidth
- 125MHz
- Package / Case
- 10-UFDFN
- Switch Circuit
- SP4T
- Charge Injection
- 9pC
- Number of Circuits
- 1
- Base Product Number
- TMUX1204
- Operating Temperature
Supplier Device Package10-USON (2.5x1) On-State Resistance (Max)5Ohm (Typ) Voltage - Supply, Dual (V±)- Switch Time (Ton, Toff) (Max)14ns, 5ns (Typ) Voltage - Supply, Single (V+)1.08V ~ 5.5V Current - Leakage (IS(off)) (Max)75nA (Typ) Multiplexer/Demultiplexer Circuit4:1 Channel-to-Channel Matching (ΔRon)150mOhm Channel Capacitance (CS(off), CD(off))13pF, 38pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥6.16000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥4.36300 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥3.91520 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.42740 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥3.19440 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥3.05390 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥3.01078 |
| Tape & Reel (TR) | 3,000 | ¥2.45979 |
