Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

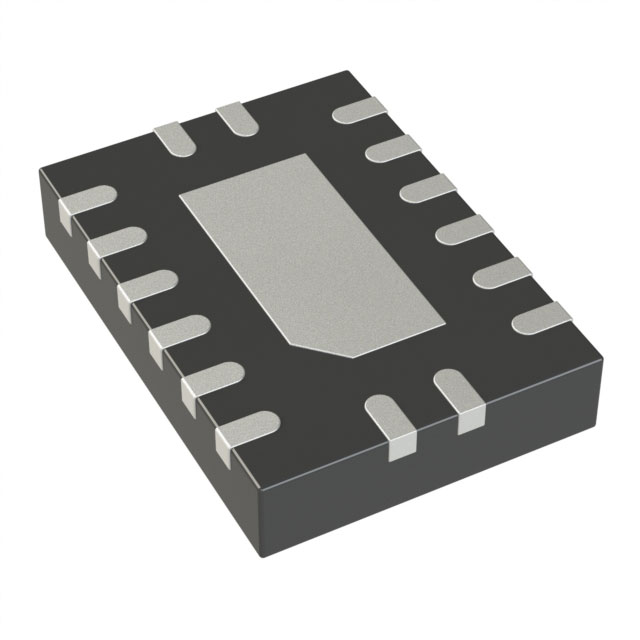

2 Circuit IC Switch 4:1 195Ohm 16-WQFN (3.5x2.5)
Specifications
- Grade
- Automotive
- Series
- -
- Crosstalk
- -90dB @ 1MHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Texas Instruments
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q100
- -3db Bandwidth
- 500MHz
- Package / Case
- 16-WFQFN Exposed Pad
- Switch Circuit
- SP4T
- Charge Injection
- -6.5pC
- Number of Circuits
- 2
Base Product NumberTMUX1309 Operating Temperature-40°C ~ 125°C (TA) Supplier Device Package16-WQFN (3.5x2.5) On-State Resistance (Max)195Ohm Voltage - Supply, Dual (V±)- Switch Time (Ton, Toff) (Max)32ns, 40ns Voltage - Supply, Single (V+)1.62V ~ 5.5V Current - Leakage (IS(off)) (Max)1nA (Typ) Multiplexer/Demultiplexer Circuit4:1 Channel-to-Channel Matching (ΔRon)7Ohm Channel Capacitance (CS(off), CD(off))14pF, 7pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥4.11000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.88300 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥2.57720 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.23820 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥2.07596 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.97826 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.89793 |
| Tape & Reel (TR) | 3,000 | ¥1.56143 |
