Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

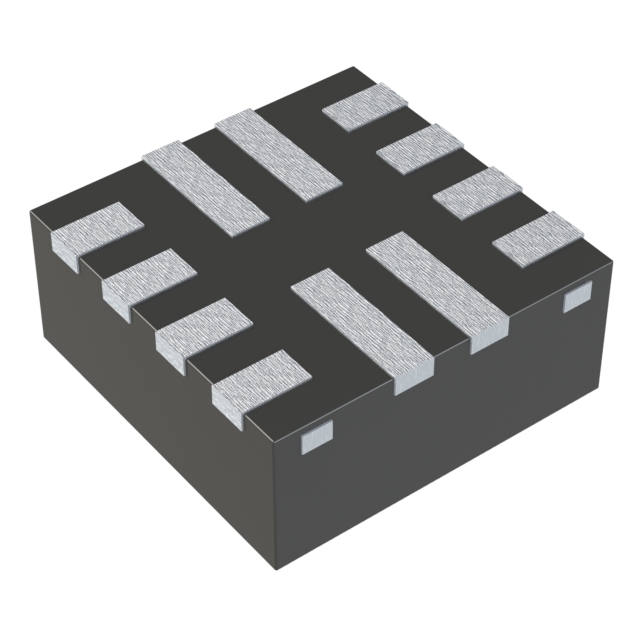

2 Circuit IC Switch 3:1 7Ohm 12-WQFN (1.8x1.8)
Specifications
- Grade
- -
- Series
- -
- Crosstalk
- -38dB @ 240MHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Texas Instruments
- Mounting Type
- Surface Mount
- Qualification
- -
- -3db Bandwidth
- 6.5GHz
- Package / Case
- 12-WFQFN
- Switch Circuit
- SP3T - Open/Closed
- Charge Injection
- -
- Number of Circuits
- 2
Operating Temperature-40°C ~ 85°C (TA) Supplier Device Package12-WQFN (1.8x1.8) On-State Resistance (Max)7Ohm Voltage - Supply, Dual (V±)- Switch Time (Ton, Toff) (Max)100µs, 100µs Voltage - Supply, Single (V+)2.5V ~ 4.3V Current - Leakage (IS(off)) (Max)2µA Multiplexer/Demultiplexer Circuit3:1 Channel-to-Channel Matching (ΔRon)100mOhm Channel Capacitance (CS(off), CD(off))1pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥11.40000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥8.23200 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥7.45320 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥6.59300 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥6.18252 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥5.93482 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥5.73105 |
| Tape & Reel (TR) | 3,000 | ¥5.47937 |
| Tape & Reel (TR) | 6,000 | ¥5.35624 |
| Tape & Reel (TR) | 9,000 | ¥5.29456 |
| Tape & Reel (TR) | 15,000 | ¥5.22625 |
