Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

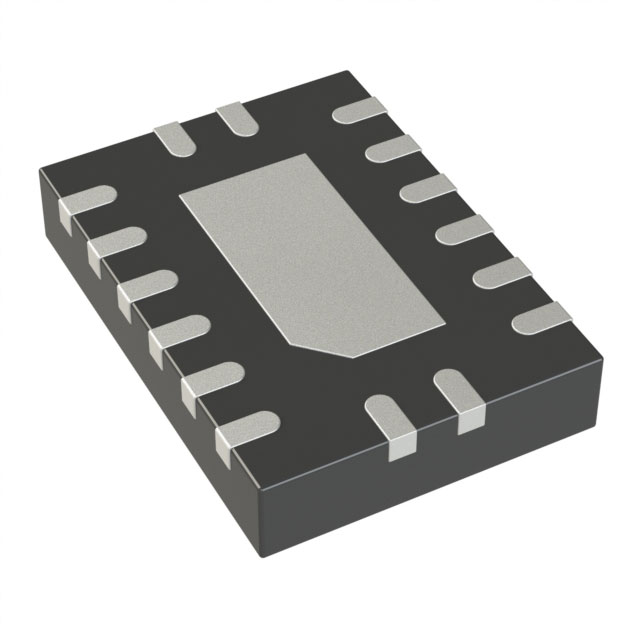

1 Circuit IC Switch 8:1 240Ohm 16-WQFN (3.5x2.5)
Specifications
- Grade
- Automotive
- Series
- -
- Crosstalk
- -90dB @ 1MHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Texas Instruments
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q100
- -3db Bandwidth
- 430MHz
- Package / Case
- 16-WFQFN Exposed Pad
- Switch Circuit
- SP8T - Open
- Charge Injection
- 2pC
- Number of Circuits
- 1
Operating Temperature-55°C ~ 125°C (TA) Supplier Device Package16-WQFN (3.5x2.5) On-State Resistance (Max)240Ohm Voltage - Supply, Dual (V±)- Switch Time (Ton, Toff) (Max)110ns, 85ns (Typ) Voltage - Supply, Single (V+)5V ~ 24V Current - Leakage (IS(off)) (Max)- Multiplexer/Demultiplexer Circuit8:1 Channel-to-Channel Matching (ΔRon)2Ohm Channel Capacitance (CS(off), CD(off))3pF, 9pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥5.93000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥4.21800 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥3.78240 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.30210 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥3.07400 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.93626 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥2.87925 |
| Tape & Reel (TR) | 3,000 | ¥2.68290 |
| Tape & Reel (TR) | 6,000 | ¥2.61438 |
| Tape & Reel (TR) | 9,000 | ¥2.58005 |
| Tape & Reel (TR) | 15,000 | ¥2.54202 |
| Tape & Reel (TR) | 21,000 | ¥2.51979 |
| Tape & Reel (TR) | 30,000 | ¥2.49842 |
