Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

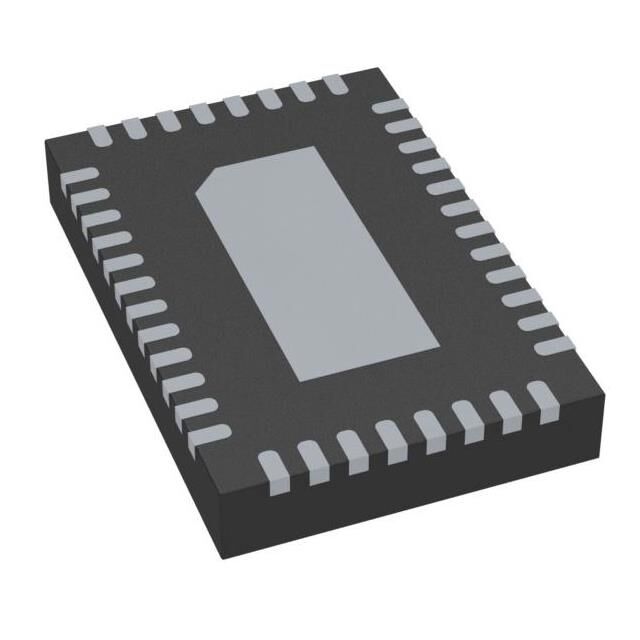

6 Circuit IC Switch 1:2, 2:1 110Ohm 40-WQFN (6x3)
Specifications
- Grade
- -
- Series
- -
- Crosstalk
- -30dB @ 10GHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Texas Instruments
- Mounting Type
- Surface Mount
- Qualification
- -
- -3db Bandwidth
- 13GHz
- Package / Case
- 40-WFQFN Exposed Pad
- Switch Circuit
- DPST, SPDT
- Charge Injection
- -
- Number of Circuits
- 6
Operating Temperature0°C ~ 105°C (TA) Supplier Device Package40-WQFN (6x3) On-State Resistance (Max)110Ohm Voltage - Supply, Dual (V±)- Switch Time (Ton, Toff) (Max)200ns, 400ns Voltage - Supply, Single (V+)3V ~ 3.6V Current - Leakage (IS(off)) (Max)- Multiplexer/Demultiplexer Circuit1:2, 2:1 Channel-to-Channel Matching (ΔRon)- Channel Capacitance (CS(off), CD(off))- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥25.67000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥19.22600 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥17.60880 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥15.83150 |
| Tape & Reel (TR) | 250 | ¥16.23956 |
| Tape & Reel (TR) | 500 | ¥15.68594 |
| Tape & Reel (TR) | 750 | ¥15.40868 |
| Tape & Reel (TR) | 1,250 | ¥15.10139 |
| Tape & Reel (TR) | 1,750 | ¥14.92190 |
| Tape & Reel (TR) | 2,500 | ¥14.74919 |
| Tape & Reel (TR) | 6,250 | ¥14.37731 |
