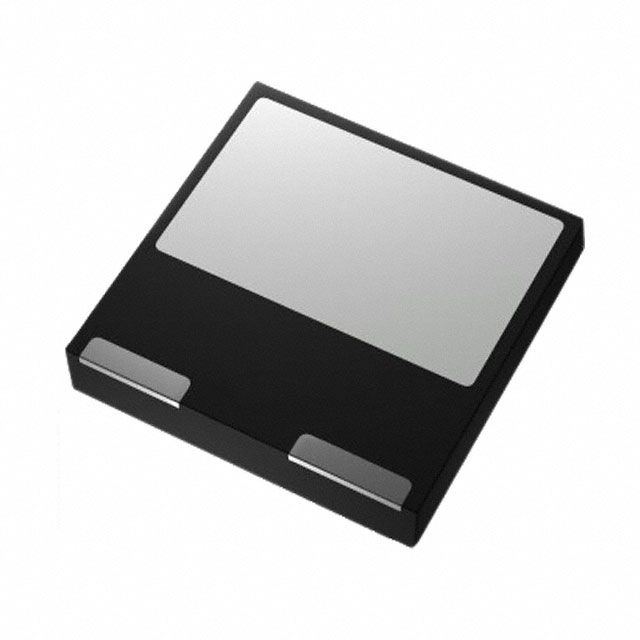

TP65H150LSG
GANFET N-CH 650V 15A 3PQFN
Manufacturer: Renesas Electronics CorporationIC code: 1707-TP65H150LSG-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 650 V 15A (Tc) 69W (Tc) Surface Mount 3-PQFN (8x8)
Specifications
- Mfr
- Renesas Electronics Corporation
- Grade
- -
- Series
- -
- FET Type
- N-Channel
- Packaging
- Tube
- Vgs (Max)
- ±20V
- Technology
- GaNFET (Gallium Nitride)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 3-PowerDFN
- Vgs(th) (Max) @ Id
- 4.8V @ 500µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 180mOhm @ 10A, 10V
- Power Dissipation (Max)
- 69W (Tc)
- Supplier Device Package
- 3-PQFN (8x8)
- Gate Charge (Qg) (Max) @ Vgs
- 7.1 nC @ 10 V
