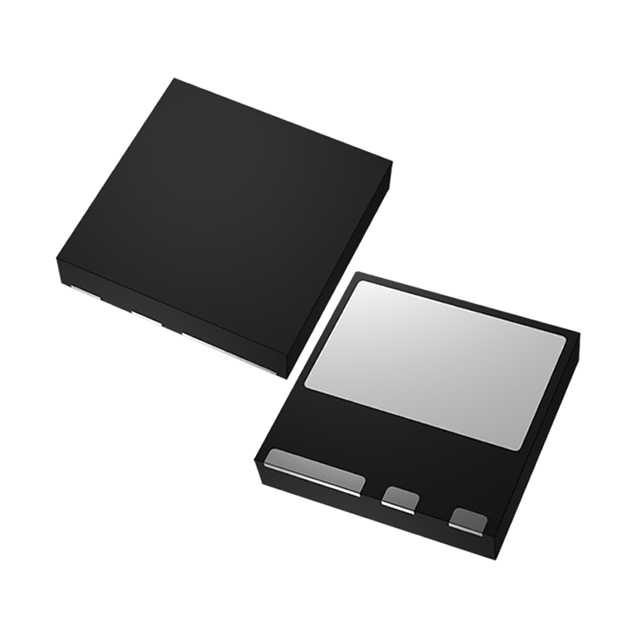

TPH3202LD
GANFET N-CH 600V 9A 4PQFN
Manufacturer: Renesas Electronics CorporationIC code: TPH3202LD-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 600 V 9A (Tc) 65W (Tc) Surface Mount 4-PQFN (8x8)
Specifications
- Mfr
- Renesas Electronics Corporation
- Grade
- -
- Series
- -
- FET Type
- N-Channel
- Packaging
- Tube
- Vgs (Max)
- ±18V
- Technology
- GaNFET (Gallium Nitride)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 4-PowerDFN
- Vgs(th) (Max) @ Id
- 2.5V @ 250µA
- Operating Temperature
- -55°C ~ 175°C (TJ)
- Rds On (Max) @ Id, Vgs
- 350mOhm @ 5.5A, 8V
- Power Dissipation (Max)
- 65W (Tc)
- Supplier Device Package
- 4-PQFN (8x8)
- Gate Charge (Qg) (Max) @ Vgs
- 9.3 nC @ 4.5 V
