Description

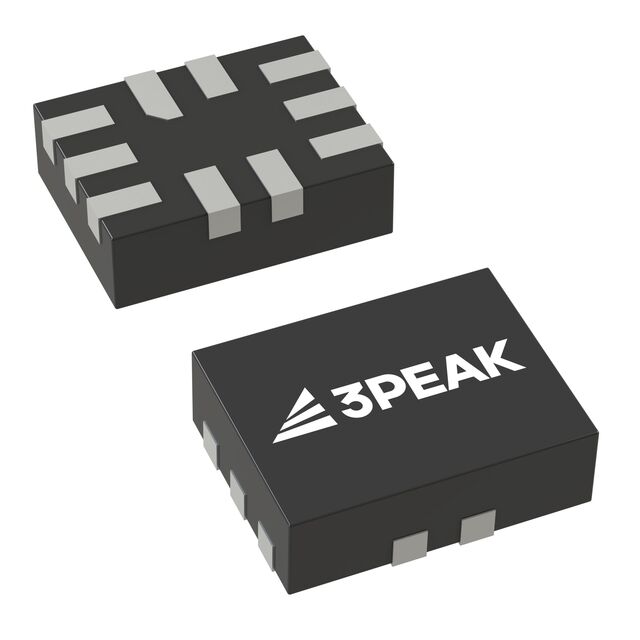

2 Circuit IC Switch 2:1 1.2Ohm 10-QFN (1.8x1.4)
Specifications
- Grade
- -
- Series
- -
- Crosstalk
- -65dB @ 1MHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- 3PEAK
- Mounting Type
- Surface Mount
- Qualification
- -
- -3db Bandwidth
- 100MHz
- Package / Case
- 10-UFQFN
- Switch Circuit
- SPDT - Open/Closed
- Charge Injection
- 20pC
- Number of Circuits
- 2
Supplier Device Package10-QFN (1.8x1.4) On-State Resistance (Max)1.2Ohm Voltage - Supply, Dual (V±)- Switch Time (Ton, Toff) (Max)40ns, 15ns Voltage - Supply, Single (V+)1.65V ~ 5.5V Current - Leakage (IS(off)) (Max)10nA Multiplexer/Demultiplexer Circuit2:1 Channel-to-Channel Matching (ΔRon)120mOhm (Max) Channel Capacitance (CS(off), CD(off))12pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥4.53000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.19100 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥2.85080 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.48120 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥2.30424 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.19746 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥2.10968 |
| Tape & Reel (TR) | 4,000 | ¥1.94413 |
