Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

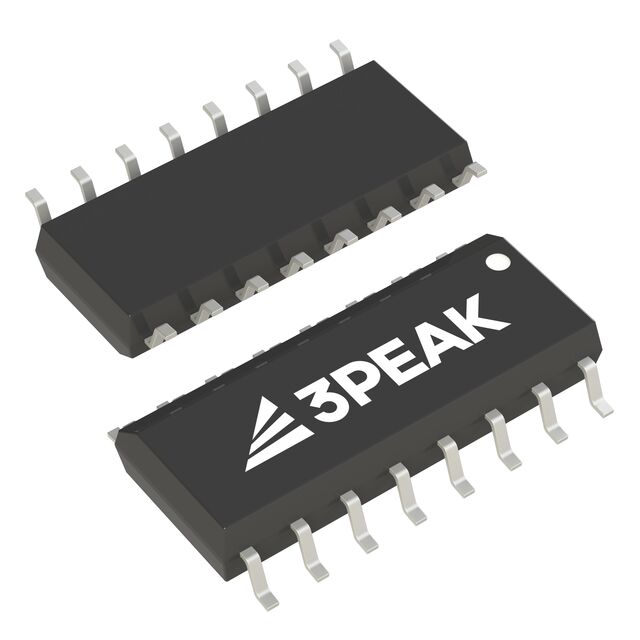

1 Circuit IC Switch 8:1 80Ohm 16-SOIC
Specifications
- Grade
- -
- Series
- -
- Crosstalk
- -70dB @ 1MHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- 3PEAK
- Mounting Type
- Surface Mount
- Qualification
- -
- -3db Bandwidth
- 200MHz
- Package / Case
- 16-SOIC (0.154", 3.90mm Width)
- Switch Circuit
- SP8T - Open
- Charge Injection
- -
- Number of Circuits
- 1
Operating Temperature-40°C ~ 125°C Supplier Device Package16-SOIC On-State Resistance (Max)80Ohm Voltage - Supply, Dual (V±)- Switch Time (Ton, Toff) (Max)60ns, 50ns Voltage - Supply, Single (V+)3V ~ 12V Current - Leakage (IS(off)) (Max)1µA Multiplexer/Demultiplexer Circuit8:1 Channel-to-Channel Matching (ΔRon)15Ohm Channel Capacitance (CS(off), CD(off))5pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥5.05000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.57600 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥3.20320 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.79350 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥2.59788 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.47998 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥2.38278 |
| Tape & Reel (TR) | 2,500 | ¥2.20732 |
