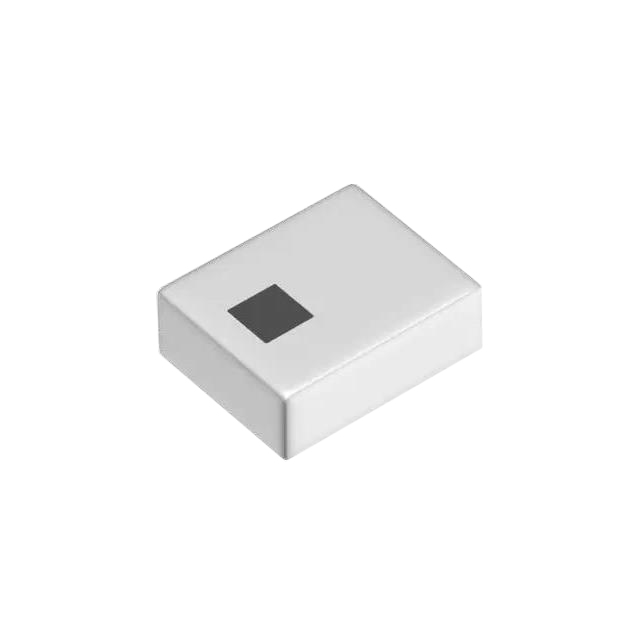

TPX255000MT-7019B6
MULTILAYER TPX FOR UMTS/LTE/5G
Manufacturer: TDK CorporationIC code: 445-TPX255000MT-7019B6TR-ND - Tape & Reel (TR) || 445-TPX255000MT-7019B6CT-ND - Cut Tape (CT) || 445-TPX255000MT-7019B6DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Triplexer 698MHz ~ 960MHz / 2.496GHz ~ 5GHz 1008 (2520 Metric), 9 PC Pad
Specifications
- Type
- Triplexer
- Series
- TPX
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- TDK Corporation
- Mounting Type
- Surface Mount
- Package / Case
- 1008 (2520 Metric), 9 PC Pad
- Frequency Bands (Low / High)
- 698MHz ~ 960MHz / 2.496GHz ~ 5GHz
- Return Loss (Low Band / High Band)
- 14.0dB / 14.0dB
- Low Band Attenuation (min / max dB)
- 35.00dB / 51.30dB
- High Band Attenuation (min / max dB)
- 18.00dB / 21.70dB
