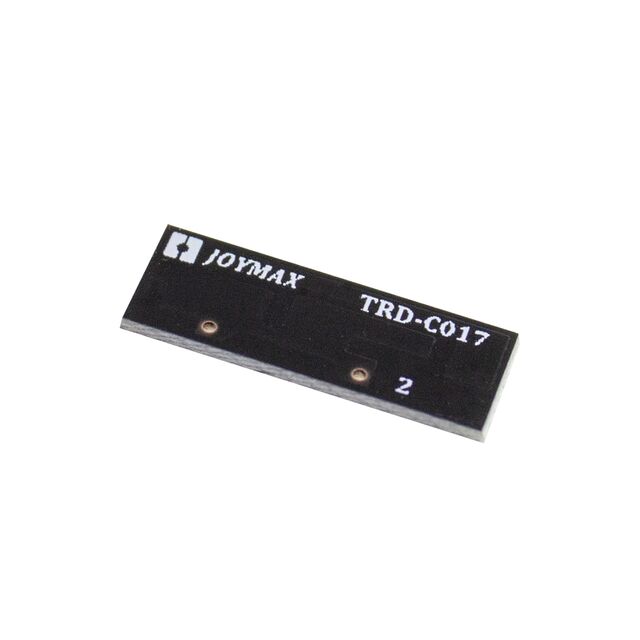

TRD-C017SMDB
ANT WIFI 7/6E SURFACE MOUNT CHIP
Manufacturer: Joymax ElectronicsIC code: 5448-TRD-C017SMDBTR-ND - Tape & Reel (TR) || 5448-TRD-C017SMDBCT-ND - Cut Tape (CT) || 5448-TRD-C017SMDBDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF ANTENNA 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E Chip Solder Surface Mount
Specifications
- Gain
- 2.4dBi, 5.8dBi, 5.0dBi
- VSWR
- 1.7, 2.1, 1.9
- Grade
- -
- Series
- C017
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Power - Max
- 1 W
- Return Loss
- -11.7dB, -9.0dB, -10.2dB
- Termination
- Solder
- Antenna Type
- Chip
- Applications
- 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
- Height (Max)
- 0.031" (0.80mm)
