TSM-104-01-SM-SV-P-TR

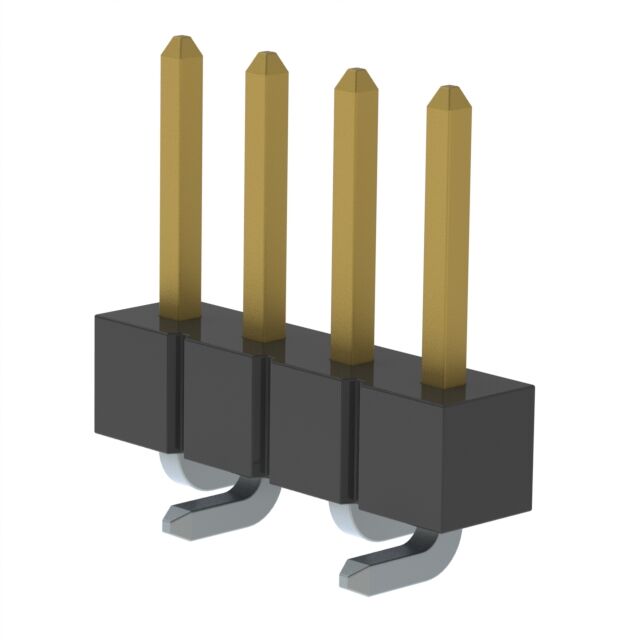

CONN HEADER SMD 4POS 2.54MM
Manufacturer: Samtec Inc.IC code: 612-TSM-104-01-SM-SV-P-TR-ND - Tape & Reel (TR) || 612-TSM-104-01-SM-SV-P-TRCT-ND - Cut Tape (CT) || 612-TSM-104-01-SM-SV-P-TRDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 4 position 0.100" (2.54mm)
Specifications
- Mfr
- Samtec Inc.
- Style
- Board to Board or Cable
- Series
- TSM
- Features
- Pick and Place
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Unshrouded
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header, Cuttable
Pitch - Mating0.100" (2.54mm) Contact MaterialPhosphor Bronze Insulation Height0.100" (2.54mm) Base Product NumberTSM-104 Insulation MaterialLiquid Crystal Polymer (LCP) Operating Temperature-55°C ~ 125°C Contact Finish - MatingGold Contact Length - Mating0.230" (5.84mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating30.0µin (0.76µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥8.60000 |
| Tape & Reel (TR) | 325 | ¥8.60080 |
| Tape & Reel (TR) | 650 | ¥7.02949 |
| Tape & Reel (TR) | 1,625 | ¥6.11985 |
| Tape & Reel (TR) | 2,275 | ¥5.95439 |
