TSM-104-02-L-SH-A-P-TR

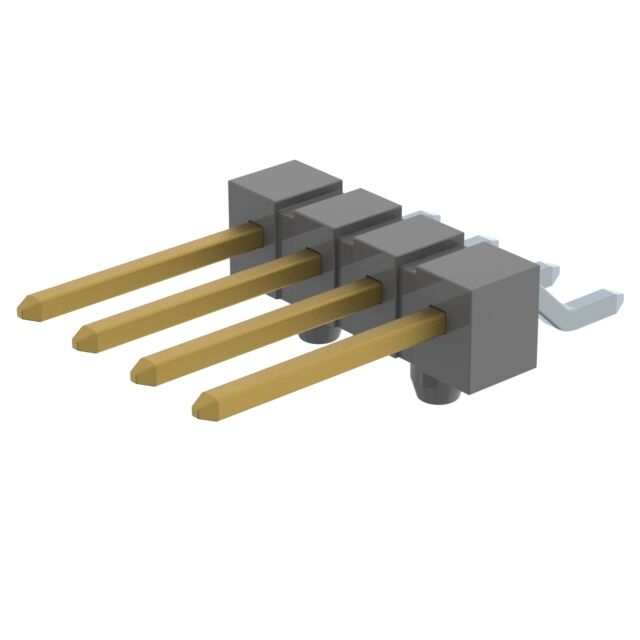

CONN HEADER SMD R/A 4POS 2.54MM
Manufacturer: Samtec Inc.IC code: 612-TSM-104-02-L-SH-A-P-TR-ND - Tape & Reel (TR) || 612-TSM-104-02-L-SH-A-P-CT-ND - Cut Tape (CT) || 612-TSM-104-02-L-SH-A-P-DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 4 position 0.100" (2.54mm)
Specifications
- Mfr
- Samtec Inc.
- Style
- Board to Board or Cable
- Series
- TSM
- Features
- Board Guide, Pick and Place
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Unshrouded
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
Pitch - Mating0.100" (2.54mm) Contact MaterialPhosphor Bronze Insulation Height0.120" (3.05mm) Base Product NumberTSM-104 Insulation MaterialLiquid Crystal Polymer (LCP) Operating Temperature-55°C ~ 125°C Contact Finish - MatingGold Contact Length - Mating0.320" (8.13mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating10.0µin (0.25µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥12.82000 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥11.23900 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥10.08360 |
| Tape & Reel (TR) | 275 | ¥10.08396 |
| Tape & Reel (TR) | 550 | ¥8.57704 |
| Tape & Reel (TR) | 1,375 | ¥7.72988 |
| Tape & Reel (TR) | 2,750 | ¥7.63657 |
| Tape & Reel (TR) | 6,875 | ¥7.33849 |
