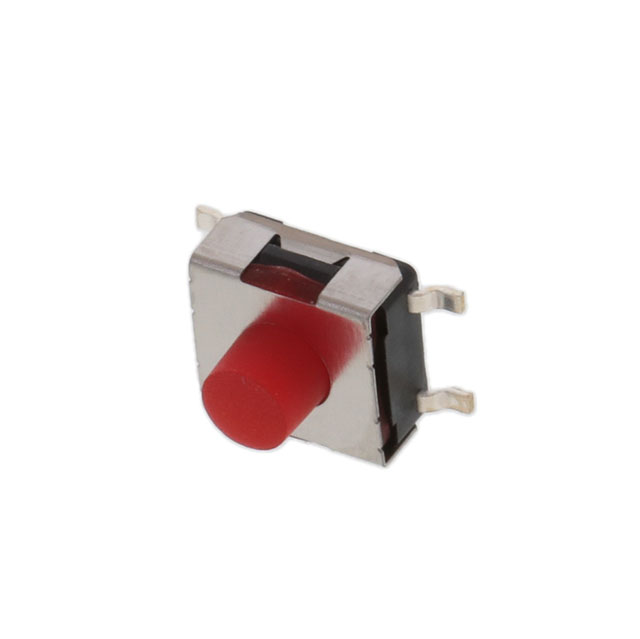

TSM9W-5.2-260-TR
SWITCH TACTILE SPST-NO 0.05A 12V
Manufacturer: E-SwitchIC code: EG6086TR-ND - Tape & Reel (TR) || EG6086CT-ND - Cut Tape (CT) || EG6086DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- E-Switch
- Series
- TSM9W
- Circuit
- SPST-NO
- Outline
- 6.30mm x 6.20mm
- Features
- Washable
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- -
- Mechanical Life
- -
- Operating Force
- 260gf
Actuator MaterialSilicone Rubber Termination StyleGull Wing Actuator OrientationTop Actuated Operating Temperature-20°C ~ 70°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical5.20mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥6.45000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥5.48300 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥5.10440 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥4.55510 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥4.21936 |
| Tape & Reel (TR) | 900 | ¥3.80043 |
| Tape & Reel (TR) | 1,800 | ¥3.60121 |
| Tape & Reel (TR) | 2,700 | ¥3.49386 |
| Tape & Reel (TR) | 4,500 | ¥3.36822 |
| Tape & Reel (TR) | 6,300 | ¥3.29121 |
| Tape & Reel (TR) | 9,000 | ¥3.21439 |
| Tape & Reel (TR) | 22,500 | ¥3.03882 |
