TSPB15U50S

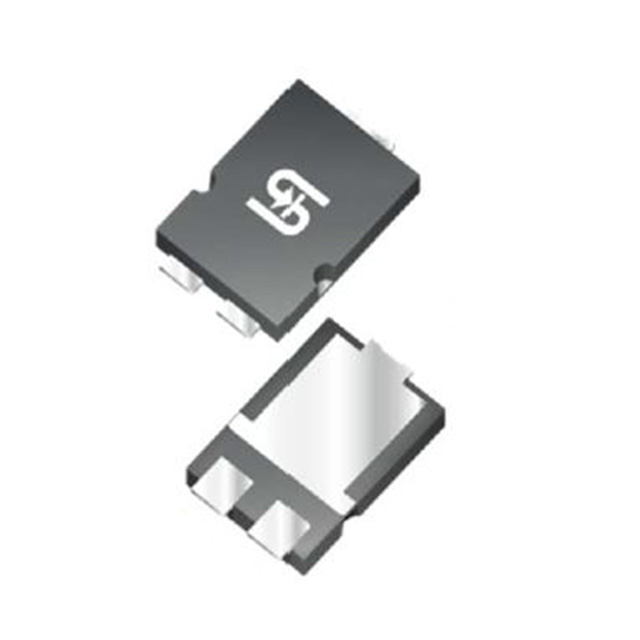

DIODE SCHOTTKY 50V 15A SMPC4.0
Manufacturer: Taiwan Semiconductor CorporationIC code: 1801-TSPB15U50STR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Diode 50 V 15A Surface Mount SMPC4.0
Specifications
- Mfr
- Taiwan Semiconductor Corporation
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Series
- -
- Packaging
- Tape & Reel (TR)
- Technology
- Schottky
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Package / Case
- TO-277, 3-PowerDFN
- Base Product Number
- TSPB15
- Capacitance @ Vr, F
- -
- Supplier Device Package
- SMPC4.0
- Current - Reverse Leakage @ Vr
- 2 mA @ 50 V
- Voltage - DC Reverse (Vr) (Max)
- 50 V
- Current - Average Rectified (Io)
- 15A
- Operating Temperature - Junction
- -55°C ~ 150°C
- Voltage - Forward (Vf) (Max) @ If
- 560 mV @ 15 A
