Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

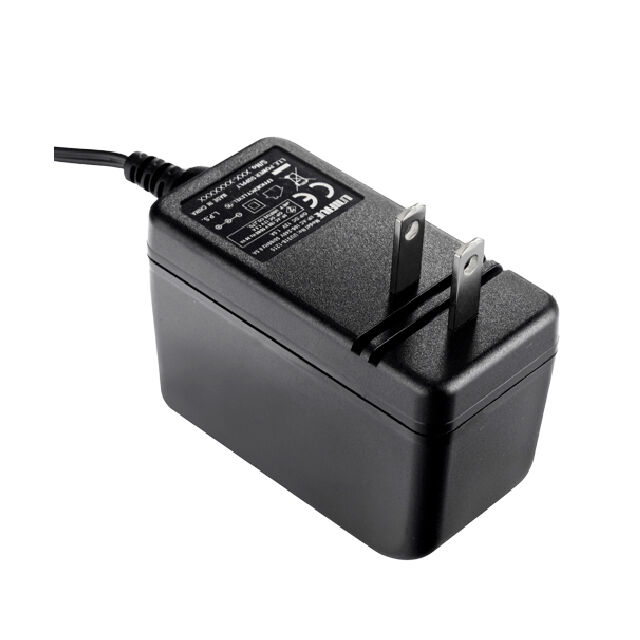

12V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Specifications
- Form
- Wall Mount (Class II)
- Series
- UU18W (18W)
- Weight
- 0.302 lb (136.98 g)
- Features
- -
- Packaging
- Bag
- Efficiency
- 85%
- Input Type
- Fixed Blade
- Cord Length
- 60.2" (1.50m)
- Part Status
- Active
- Applications
- ITE (Commercial), A/V
- Manufacturer
- UNIFIVE
- Polarization
- Positive Center
- Power (Watts)
- 18 W
Input ConnectorNEMA 1-15P Voltage - Input100 ~ 240 VAC Output ConnectorBarrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm Size / Dimension2.76" L x 1.29" W x 1.91" H (70.0mm x 32.8mm x 48.5mm) Operating Temperature0°C ~ 40°C Current - Output (Max)1.5A No Load Power Consumption100mW (Max) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥188.64000 |
| Bag | 5 | ¥173.42000 |
| Bag | 10 | ¥167.27500 |
| Bag | 25 | ¥159.48000 |
| Bag | 50 | ¥153.82160 |
| Bag | 100 | ¥148.36590 |
| Bag | 250 | ¥141.44952 |
| Bag | 500 | ¥136.43200 |
