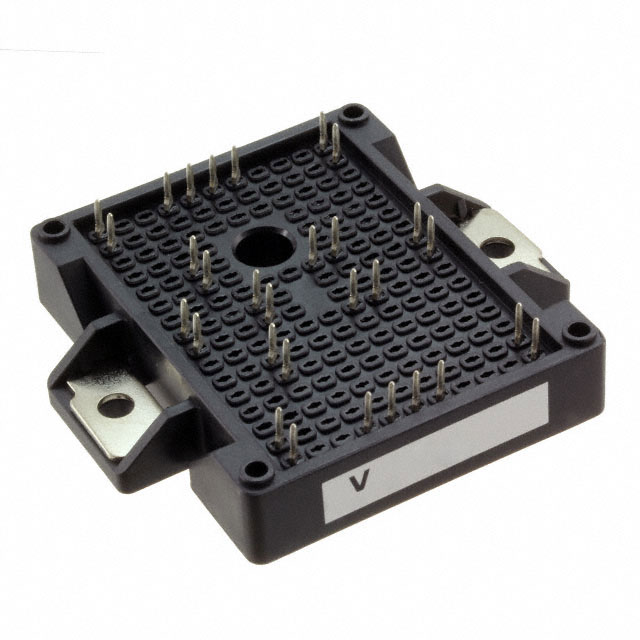

VS-ETL015Y120H
IGBT MOD 1200V 22A 89W EMIPAK-2B
Manufacturer: Vishay General Semiconductor - Diodes DivisionIC code: VS-ETL015Y120HGI-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
IGBT Module Trench 1200 V 22 A 89 W Chassis Mount EMIPAK-2B
Specifications
- Input
- Standard
- Series
- -
- IGBT Type
- Trench
- Packaging
- Bulk
- Part Status
- Active
- Power - Max
- 89 W
- Manufacturer
- Vishay General Semiconductor - Diodes Division
- Mounting Type
- Chassis Mount
- NTC Thermistor
- Yes
- Package / Case
- EMIPAK-2B
- Base Product Number
- ETL015
- Operating Temperature
- 150°C (TJ)
- Supplier Device Package
- EMIPAK-2B
- Vce(on) (Max) @ Vge, Ic
- 3.03V @ 15V, 15A
- Current - Collector (Ic) (Max)
- 22 A
- Input Capacitance (Cies) @ Vce
- 1.07 nF @ 30 V
- Current - Collector Cutoff (Max)
- 75 µA
