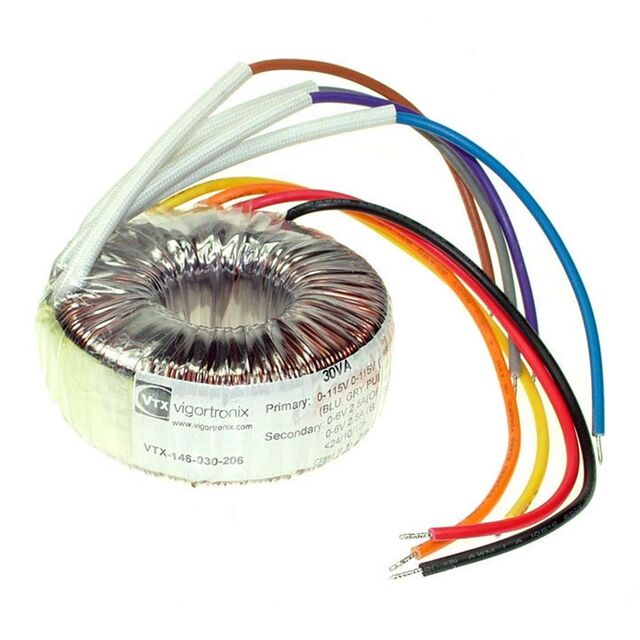

VTX-146-030-206
PWR XFMR TOROIDAL 30VA CHAS MT
Manufacturer: VigortronixIC code: 5578-VTX-146-030-206-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Toroidal 30VA Power Transformer 115V, 230V Primary Parallel 6V, Series 12V Secondary 2.5A Chassis Mount
Specifications
- Type
- Toroidal
- Series
- VTX-146-xxx-2xx
- Weight
- 1.102 lbs (500 g)
- Packaging
- Bulk
- Center Tap
- No
- Part Status
- Active
- Power - Max
- 30VA
- Manufacturer
- Vigortronix
- Mounting Type
- Chassis Mount
- Size / Dimension
- 74.00mm Dia
- Termination Style
- Wire Leads
- Voltage - Primary
- 115V, 230V
- Primary Winding(s)
- Dual
- Voltage - Isolation
- 4200Vrms
- Secondary Winding(s)
- Dual
- Height - Seated (Max)
- 33.00mm
- Current - Output (Max)
- 2.5A
- Voltage - Secondary (Full Load)
- Parallel 6V, Series 12V
