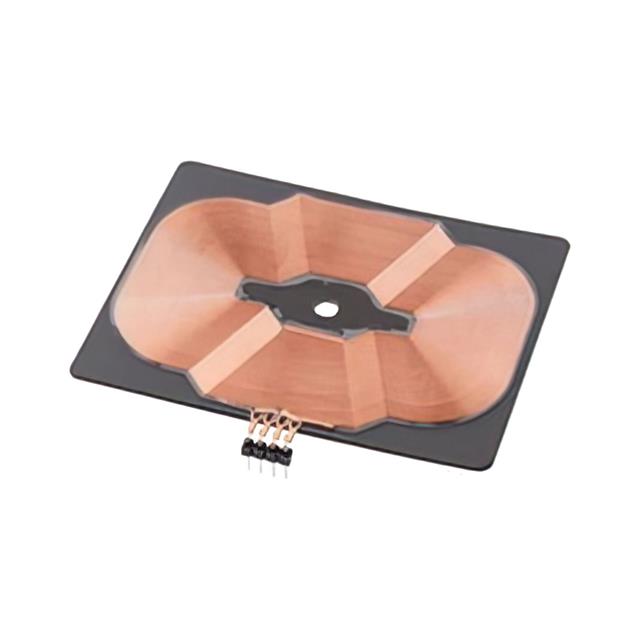

WCT38466-N0E0SST101
PATTERNED TX COIL FOR WPT
Manufacturer: TDK CorporationIC code: 445-WCT38466-N0E0SST101-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
1 Coil, 2 Layer 10.6µH Wireless Charging Coil Transmitter 149mOhm Max
Specifications
- Type
- 1 Coil, 2 Layer
- Series
- WCT
- Function
- Transmitter
- Q @ Freq
- -
- Packaging
- Tray
- Tolerance
- ±0.5µH
- Inductance
- 10.6µH
- Part Status
- Last Time Buy
- Manufacturer
- TDK Corporation
- Size / Dimension
- 3.35" L x 2.64" W x 0.03" H (85.1mm x 67.0mm x 0.8mm)
- DC Resistance (DCR)
- 149mOhm Max
- Current Rating (Amps)
- -
- Operating Temperature
