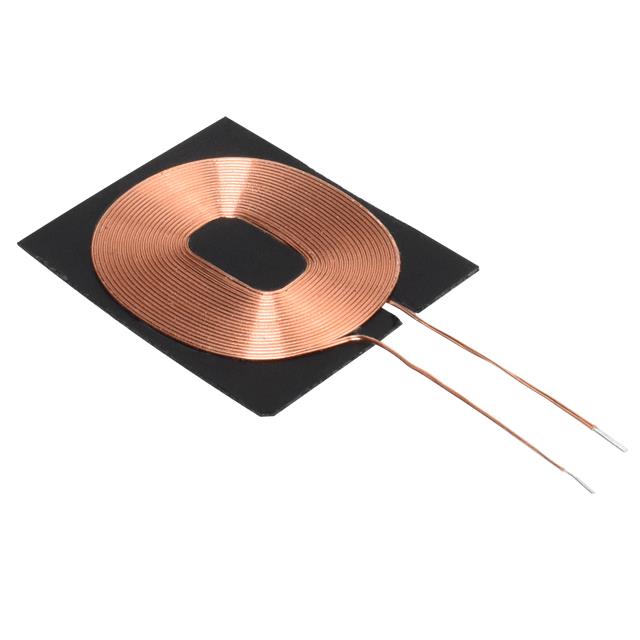

WRSR-16R7K-11
WIRELESE CHARGE COIL 16.7UH 4.0A
Manufacturer: Signal TransformerIC code: 595-WRSR-16R7K-11-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
1 Coil, 1 Layer 16.7µH Wireless Charging Coil Receiver 430mOhm Max
Specifications
- Type
- 1 Coil, 1 Layer
- Series
- WRSR
- Function
- Receiver
- Q @ Freq
- 32 @ 125kHz
- Packaging
- Bulk
- Tolerance
- ±10%
- Inductance
- 16.7µH
- Part Status
- Active
- Manufacturer
- Signal Transformer
- Size / Dimension
- 1.52" L x 1.20" W x 0.04" H (38.5mm x 30.5mm x 1.1mm)
- DC Resistance (DCR)
- 430mOhm Max
- Current Rating (Amps)
- 2.5A
- Operating Temperature
