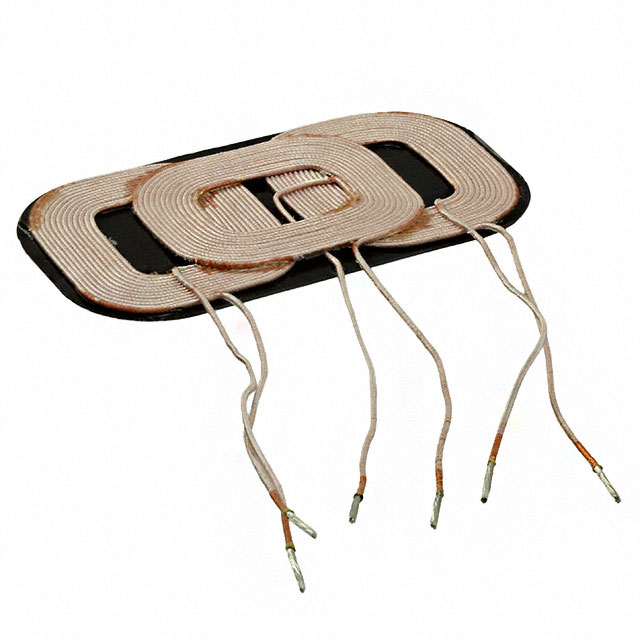

WT1005690-12K2-A6-G
TX 3 COIL 1 LAYER 11.5 - 12.5UH
Manufacturer: TDK CorporationIC code: 445-16096-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3 Coil, 1 Layer 11.5 ~ 12.5µH Wireless Charging Coil Transmitter 80mOhm
Specifications
- Type
- 3 Coil, 1 Layer
- Series
- WT
- Function
- Transmitter
- Q @ Freq
- -
- Packaging
- Tray
- Tolerance
- -
- Inductance
- 11.5 ~ 12.5µH
- Part Status
- Not For New Designs
- Manufacturer
- TDK Corporation
- Size / Dimension
- 3.94" L x 2.20" W x 0.19" H (100.0mm x 56mm x 4.8mm)
- DC Resistance (DCR)
- 80mOhm
- Current Rating (Amps)
- -
- Operating Temperature
