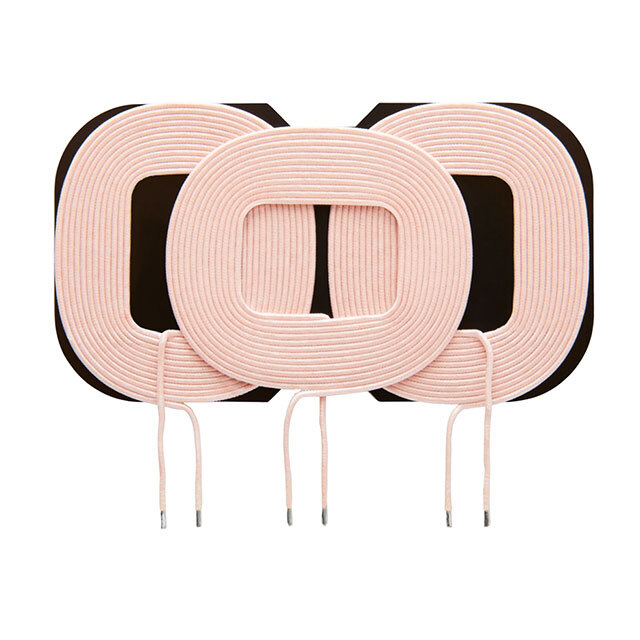

WTM12R5K-A28
MULTI-COIL WIRELESS CHARGING COI
Manufacturer: Signal TransformerIC code: 595-WTM12R5K-A28-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3 Coil, 1 Layer 11.5µH, 12.5µH Wireless Charging Coil Transmitter 65mOhm Max
Specifications
- Type
- 3 Coil, 1 Layer
- Series
- WCC
- Function
- Transmitter
- Q @ Freq
- -
- Packaging
- Box
- Tolerance
- ±10%
- Inductance
- 11.5µH, 12.5µH
- Part Status
- Active
- Manufacturer
- Signal Transformer
- Size / Dimension
- 3.70" L x 2.13" W x 0.16" H (94.0mm x 54.0mm x 4.0mm)
- DC Resistance (DCR)
- 65mOhm Max
- Current Rating (Amps)
- 7A
- Operating Temperature
