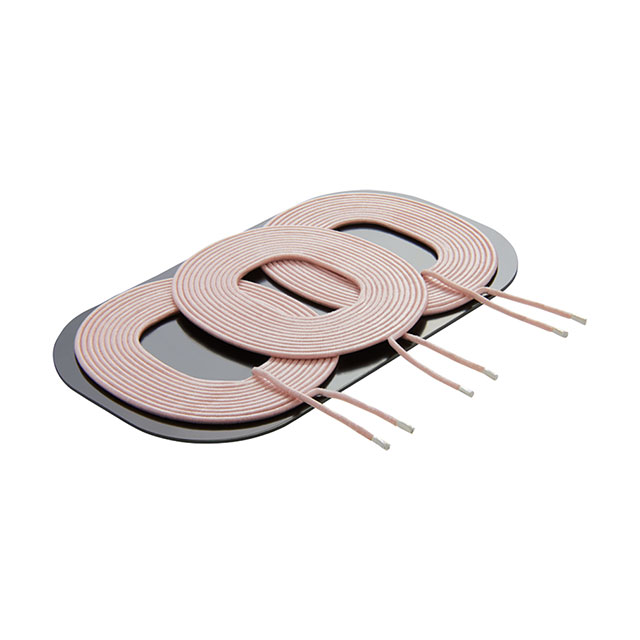

WTM9R8K-A9
MULTI-COIL WIRELESS CHARGING COI
Manufacturer: Signal TransformerIC code: 595-WTM9R8K-A9-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3 Coil, 1 Layer 9.8µH, 10.2µH, 9.8µH Wireless Charging Coil Transmitter 60mOhm Max, 65mOhm Max
Specifications
- Type
- 3 Coil, 1 Layer
- Series
- WCC
- Function
- Transmitter
- Q @ Freq
- -
- Packaging
- Box
- Tolerance
- ±10%
- Inductance
- 9.8µH, 10.2µH, 9.8µH
- Part Status
- Active
- Manufacturer
- Signal Transformer
- Size / Dimension
- 3.98" L x 2.24" W x 0.16" H (101.0mm x 57.0mm x 4.0mm)
- DC Resistance (DCR)
- 60mOhm Max, 65mOhm Max
- Current Rating (Amps)
- 8A
- Operating Temperature
