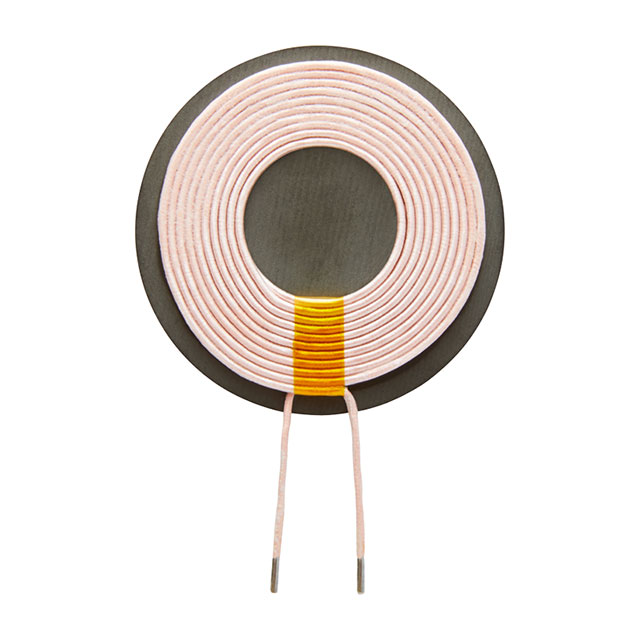

WTSC-24R0K-A10
SINGLE-COIL WIRELESS CHARGING CO
Manufacturer: Signal TransformerIC code: 595-WTSC-24R0K-A10-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 85mOhm Max
Specifications
- Type
- 1 Coil, 2 Layer
- Series
- WCC
- Function
- Transmitter
- Q @ Freq
- -
- Packaging
- Box
- Tolerance
- ±10%
- Inductance
- 24µH
- Part Status
- Active
- Manufacturer
- Signal Transformer
- Size / Dimension
- 1.97" Dia x 0.16" H (50.0mm x 4.0mm)
- DC Resistance (DCR)
- 85mOhm Max
- Current Rating (Amps)
- 6A
- Operating Temperature
- -20°C ~ 85°C
