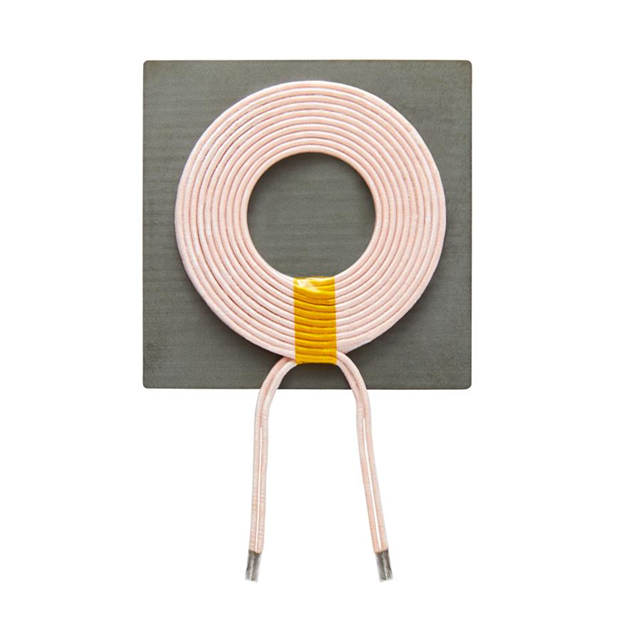

WTSQ-6R3K-A11
SINGLE-COIL SQUARE BASE WIRELESS
Manufacturer: Signal TransformerIC code: 595-WTSQ-6R3K-A11-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
2 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 25mOhm Max
Specifications
- Type
- 2 Coil, 1 Layer
- Series
- WCC
- Function
- Transmitter
- Q @ Freq
- -
- Packaging
- Box
- Tolerance
- ±10%
- Inductance
- 6.3µH
- Part Status
- Active
- Manufacturer
- Signal Transformer
- Size / Dimension
- 2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm)
- DC Resistance (DCR)
- 25mOhm Max
- Current Rating (Amps)
- 9A
- Operating Temperature
- -20°C ~ 85°C
