XBS306S17R-G

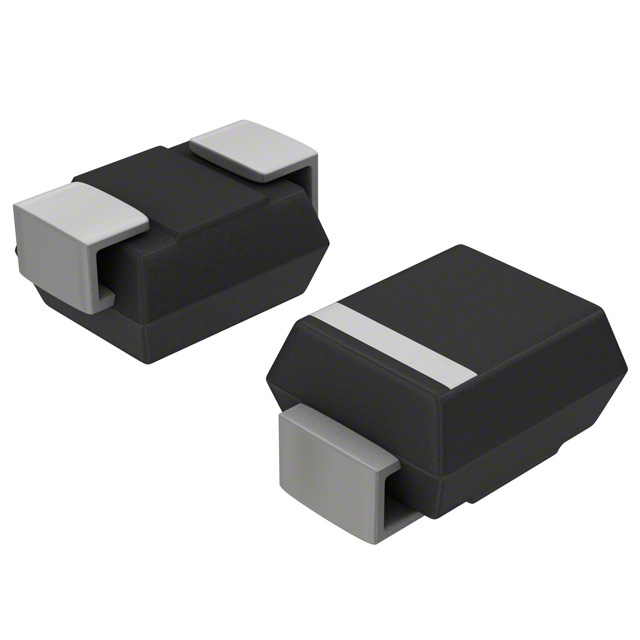

DIODE SCHOTTKY 60V 3A SMA
Manufacturer: Torex Semiconductor LtdIC code: XBS306S17R-G-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Diode 60 V 3A Surface Mount SMA
Specifications
- Mfr
- Torex Semiconductor Ltd
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Series
- -
- Packaging
- Tape & Reel (TR)
- Technology
- Schottky
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Package / Case
- DO-214AC, SMA
- Capacitance @ Vr, F
- 195pF @ 1V, 1MHz
- Supplier Device Package
- SMA
- Reverse Recovery Time (trr)
- 55 ns
- Current - Reverse Leakage @ Vr
- 300 µA @ 60 V
- Voltage - DC Reverse (Vr) (Max)
- 60 V
- Current - Average Rectified (Io)
- 3A
- Operating Temperature - Junction
- 125°C (Max)
- Voltage - Forward (Vf) (Max) @ If
- 660 mV @ 3 A
