Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

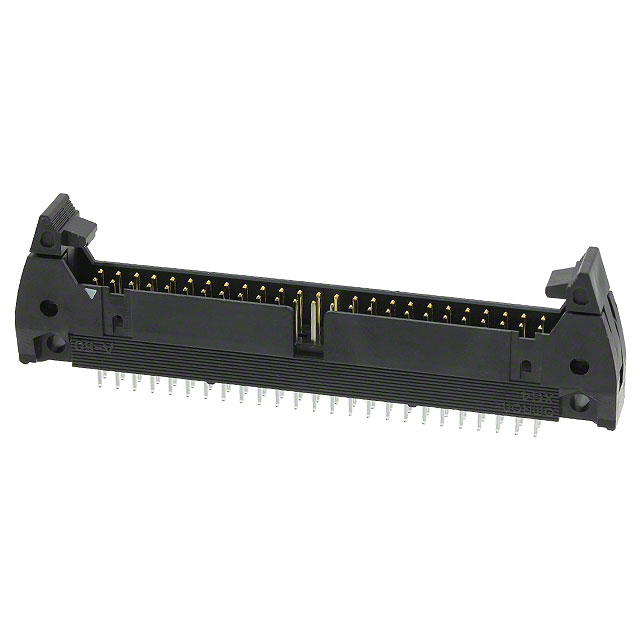

Connector Header Through Hole 50 position 0.100" (2.54mm)
Specifications
- Mfr
- Omron Electronics Inc-EMC Div
- Style
- Board to Cable/Wire
- Series
- XG4
- Features
- Keying Slot, Mounting Flange
- Packaging
- Bulk
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Header
Pitch - Mating0.100" (2.54mm) Contact MaterialBrass, Nickel Insulation Height0.669" (17.00mm) Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled Row Spacing - Mating0.100" (2.54mm) Contact Length - Post0.126" (3.20mm) Operating Temperature-55°C ~ 105°C Mated Stacking Heights23.5mm Overall Contact Length0.657" (16.70mm) Contact Finish - MatingGold Contact Length - Mating0.240" (6.10mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post78.7µin (2.00µm) Contact Finish Thickness - Mating5.90µin (0.150µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥34.98000 |
| Bulk | 30 | ¥25.93467 |
| Bulk | 120 | ¥24.71900 |
| Bulk | 510 | ¥21.23410 |
| Bulk | 1,020 | ¥18.41832 |
