XP2302GN

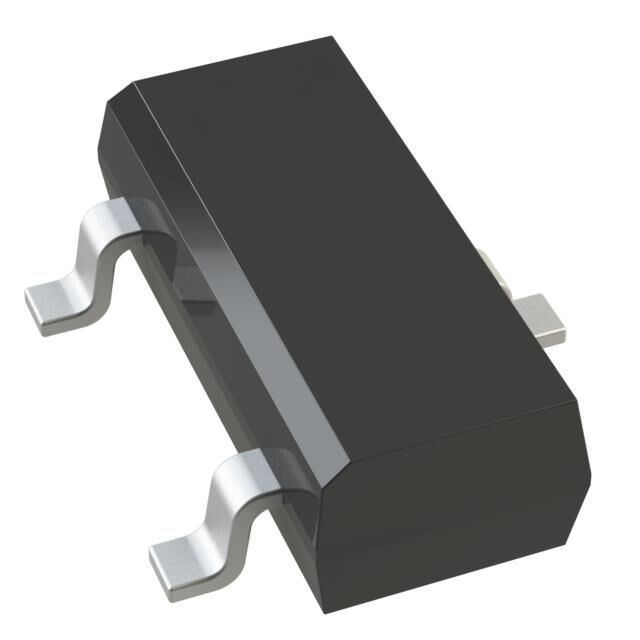

MOSFET N-CH 20V 3.2A SOT23
Manufacturer: YAGEO XSEMIIC code: 5048-XP2302GNTR-ND - Tape & Reel (TR) || 5048-XP2302GNCT-ND - Cut Tape (CT) || 5048-XP2302GNDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 20 V 3.2A (Ta) 1.38W (Ta) Surface Mount SOT-23
Specifications
- Mfr
- YAGEO XSEMI
- Grade
- -
- Series
- XP2302
- FET Type
- N-Channel
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Vgs (Max)
- ±12V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- TO-236-3, SC-59, SOT-23-3
- Vgs(th) (Max) @ Id
- 1.2V @ 250µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 85mOhm @ 3.6A, 4.5V
- Power Dissipation (Max)
- 1.38W (Ta)
- Supplier Device Package
- SOT-23
- Gate Charge (Qg) (Max) @ Vgs
