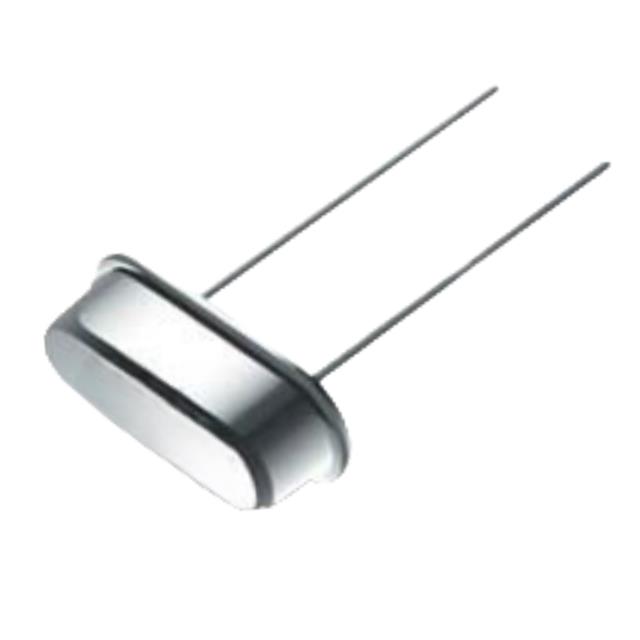

XS3M276800L212
3.2768MHz 49S 30ppm 12pF
Manufacturer: NextGen ComponentsIC code: 3372-XS3M276800L212-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.2768 MHz ±30ppm Crystal 12pF 200 Ohms HC-49/US
Specifications
- Mfr
- NextGen Components
- Type
- MHz Crystal
- Series
- CS
- Ratings
- -
- Frequency
- 3.2768 MHz
- Packaging
- Bulk
- Part Status
- Active
- Mounting Type
- Through Hole
- Operating Mode
- Fundamental
- Package / Case
- HC-49/US
- Load Capacitance
- 12pF
- Size / Dimension
- 0.435" L x 0.183" W (11.05mm x 4.65mm)
- Frequency Stability
- ±50ppm
- Frequency Tolerance
- ±30ppm
- Height - Seated (Max)
- 0.161" (4.10mm)
- Operating Temperature
- -20°C ~ 70°C
- ESR (Equivalent Series Resistance)
- 200 Ohms
