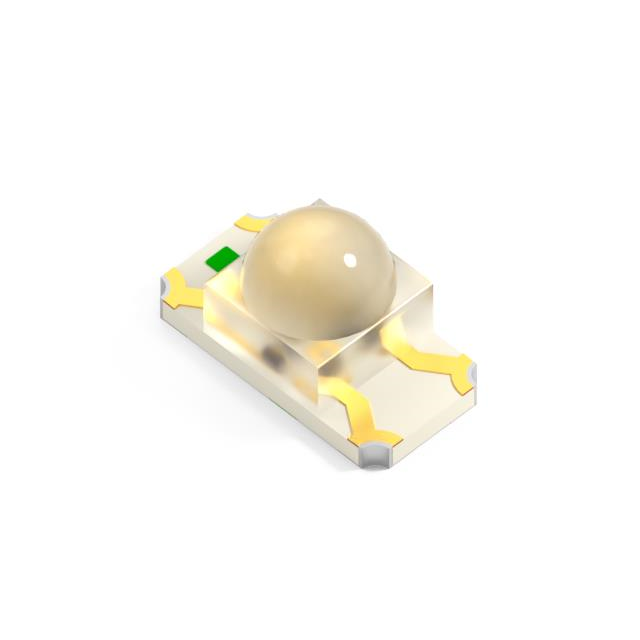

XZMDKDGK55W-8RT
LED GREEN/RED CLEAR CHIP SMD
Manufacturer: SunLEDIC code: 1497-1443-2-ND - Tape & Reel (TR) || 1497-1443-1-ND - Cut Tape (CT) || 1497-1443-6-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Green, Red 525nm Green, 630nm Red LED Indication - Discrete 3.3V Green, 1.95V Red 1206 (3216 Metric)
Specifications
- Mfr
- SunLED
- Color
- Green, Red
- Series
- -
- Features
- -
- Lens Size
- 1.60mm Dia
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- Colorless
- Lens Style
- Round with Domed Top
- Part Status
- Active
- Height (Max)
- 2.00mm
- Configuration
- Independent
- Mounting Type
- Surface Mount, Bottom Entry
- Viewing Angle
- 30°
Current - Test20mA Green, 20mA Red Package / Case1206 (3216 Metric) Size / Dimension3.20mm L x 1.60mm W Wavelength - Peak515nm Green, 645nm Red Base Product NumberXZMDKDGK55 Millicandela Rating647mcd Green, 1495mcd Red Wavelength - Dominant525nm Green, 630nm Red Supplier Device PackageChip LED Voltage - Forward (Vf) (Typ)3.3V Green, 1.95V Red Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥5.46000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.79600 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.75470 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.28764 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥2.13440 |
| Tape & Reel (TR) | 2,000 | ¥2.00423 |
| Tape & Reel (TR) | 4,000 | ¥1.89375 |
| Tape & Reel (TR) | 6,000 | ¥1.83708 |
| Tape & Reel (TR) | 10,000 | ¥1.77309 |
| Tape & Reel (TR) | 14,000 | ¥1.73502 |
| Tape & Reel (TR) | 20,000 | ¥1.69791 |
| Tape & Reel (TR) | 50,000 | ¥1.61599 |
