Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

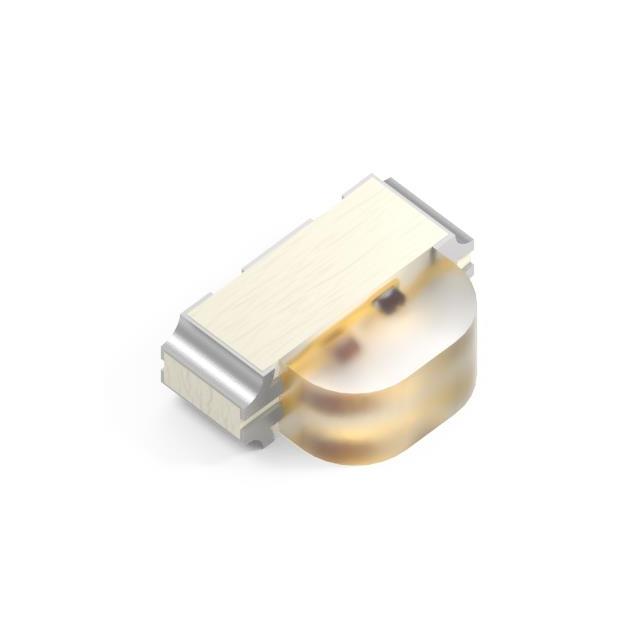

Green, Red 525nm Green, 630nm Red LED Indication - Discrete 3.3V Green, 1.95V Red 3-SMD, No Lead
Specifications
- Mfr
- SunLED
- Color
- Green, Red
- Series
- -
- Features
- -
- Lens Size
- 2.00mm x 1.00mm
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- Colorless
- Lens Style
- Rectangle with Domed Top
- Part Status
- Active
- Height (Max)
- 1.15mm
- Configuration
- Common Anode
- Mounting Type
- Surface Mount, Right Angle
- Viewing Angle
- 140°
Current - Test20mA Green, 20mA Red Package / Case3-SMD, No Lead Size / Dimension3.00mm L x 2.00mm W Wavelength - Peak515nm Green, 645nm Red Base Product NumberXZMDKDGK56 Millicandela Rating317mcd Green, 79mcd Red Wavelength - Dominant525nm Green, 630nm Red Supplier Device Package3-SMD Voltage - Forward (Vf) (Typ)3.3V Green, 1.95V Red Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥5.62000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.90300 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.83830 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.35926 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥2.20222 |
| Tape & Reel (TR) | 2,000 | ¥2.06874 |
| Tape & Reel (TR) | 4,000 | ¥1.95548 |
| Tape & Reel (TR) | 6,000 | ¥1.89740 |
| Tape & Reel (TR) | 10,000 | ¥1.83180 |
| Tape & Reel (TR) | 14,000 | ¥1.79280 |
| Tape & Reel (TR) | 20,000 | ¥1.75476 |
