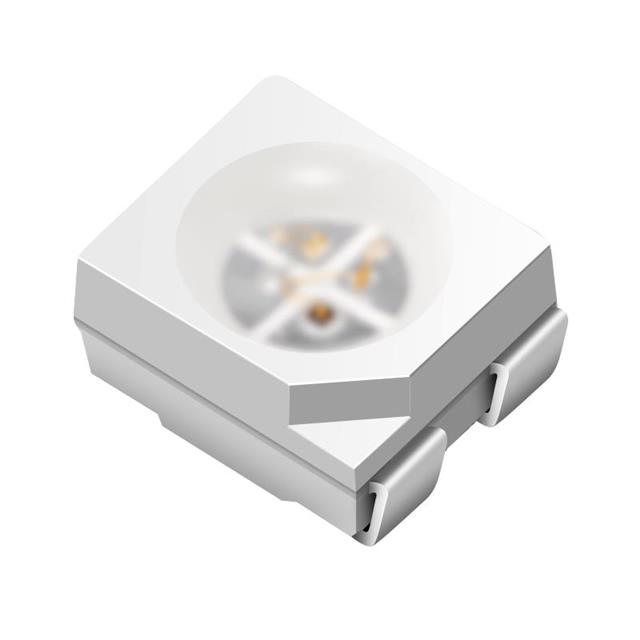

XZMDKMYKDG45S
LED GREEN/RED/YL CLR 4PLCC SMD
Manufacturer: SunLEDIC code: 1497-XZMDKMYKDG45STR-ND - Tape & Reel (TR) || 1497-XZMDKMYKDG45SCT-ND - Cut Tape (CT) || 1497-XZMDKMYKDG45SDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Green, Red, Yellow 525nm Green, 630nm Red, 590nm Yellow LED Indication - Discrete 3.3V Green, 1.95V Red, 2V Yellow 4-PLCC
Specifications
- Mfr
- SunLED
- Color
- Green, Red, Yellow
- Series
- -
- Features
- -
- Lens Size
- 2.40mm Dia
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- Colorless
- Lens Style
- Round with Flat Top
- Part Status
- Active
- Height (Max)
- 2.10mm
- Configuration
- Common Anode
- Mounting Type
- Surface Mount
- Viewing Angle
- 120°
Current - Test20mA Green, 20mA Red, 20mA Yellow Size / Dimension3.20mm L x 2.80mm W Wavelength - Peak515nm Green, 645nm Red, 590nm Yellow Millicandela Rating597mcd Green, 317mcd Red, 238mcd Yellow Wavelength - Dominant525nm Green, 630nm Red, 590nm Yellow Supplier Device Package4-PLCC Voltage - Forward (Vf) (Typ)3.3V Green, 1.95V Red, 2V Yellow Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥10.01000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥7.01300 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥5.22660 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥4.43222 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥4.17221 |
| Tape & Reel (TR) | 2,000 | ¥3.95165 |
| Tape & Reel (TR) | 4,000 | ¥3.76477 |
| Tape & Reel (TR) | 6,000 | ¥3.66902 |
| Tape & Reel (TR) | 10,000 | ¥3.56097 |
| Tape & Reel (TR) | 14,000 | ¥3.49676 |
| Tape & Reel (TR) | 20,000 | ¥3.43415 |
