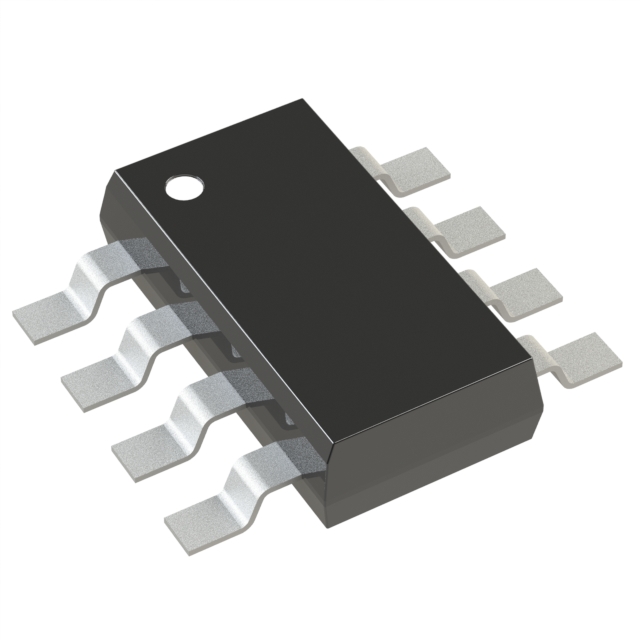

ZDT1147TA
TRANS 2PNP DUAL 12V 5A SM-8
Manufacturer: Diodes IncorporatedIC code: ZDT1147TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Bipolar (BJT) Transistor Array 2 PNP (Dual) 12V 5A 115MHz 2.75W Surface Mount SM-8
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR)
- Part Status
- Obsolete
- Power - Max
- 2.75W
- Manufacturer
- Diodes Incorporated
- Mounting Type
- Surface Mount
- Package / Case
- SOT-223-8
- Transistor Type
- 2 PNP (Dual)
- Base Product Number
- ZDT1147
- Operating Temperature
- -
- Frequency - Transition
- 115MHz
- Supplier Device Package
- SM-8
- Vce Saturation (Max) @ Ib, Ic
- 380mV @ 50mA, 5A
- Current - Collector (Ic) (Max)
- 5A
- Current - Collector Cutoff (Max)
- 100nA
- DC Current Gain (hFE) (Min) @ Ic, Vce
- 250 @ 500mA, 2V
- Voltage - Collector Emitter Breakdown (Max)
